Capture the road like never before in crisp QHD (2560×1440p) resolution. Offering twice the detail of Full HD,
every scene comes alive with sharpness and clarity.
DUAL QHD RESOLUTION

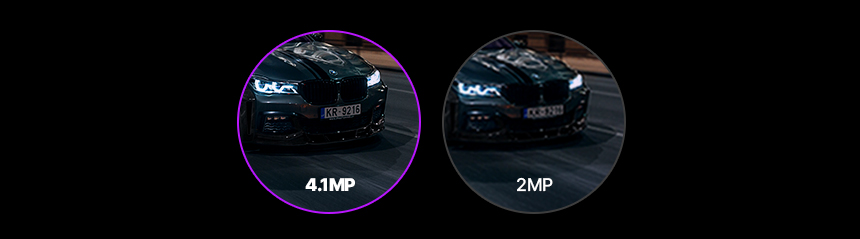

4.1MP professional camera
2560 x 1440p resolution



Quad High Definition



QHD Clarity
With SONY STARVIS 2 Technology
PROVIDES ENHANCED VISIBILITY IN LOW LIGHT AND CAPTURES CLEAR DETAILS IN DYNAMIC ROAD CONDITIONS.
The Sony STARVIS 2 IMX678 8MP image sensor features more pixels for increased clarity and detail, significantly reducing video noise and motion blur in both day and night recordings.

STARVIS 2 is advanced technology with a wider dynamic range. It excels in high sensitivity, low light and dynamic conditions.
With SONY STARVIS 2 Technology
BRIGHT AND CLEAR RECORDING EVEN IN EXTREME LOW LIGHT
Whether you’re driving or parking, footage captured in low-light environments (such as dark alleyways or outdoor parking lots) remains bright and clear.
X-VISION 2.0 leverages the advanced STARVIS 2 image sensor, providing enhanced sensitivity, reduced noise, and a wider dynamic range compared to previous night vision technologies.
This ensures high-quality video recording even in extremely low-light conditions.

Standard Night Vision
X-VISION 2.0
With Sony STARVIS 2 TechnologyDesigned to capture even the faintest light in dark places, such as dim alleyways without streetlights, and convert it into clear, noise-free electronic signals.
This allows for realistic rendering of shapes and colors, accurately conveying the image of objects. Experience the advanced X-VISION 2.0.
With SONY STARVIS 2 Technology
HDR, which stands for High Dynamic Range, is a technology that extends the range of brightness from the brightest to the darkest areas, aiming to closely replicate what the human eye sees.
With HDR functionality, you can capture clear images of details such as license plates or objects that might otherwise be missed due to low light, underground parking, or headlight reflections.

HDR OFF
HDR ON
With Sony STARVIS 2 TechnologyParking Monitoring
Long Drive Recording With
LAPSE
No more worries about missing out while driving long distances. By compressing the recorded video, Hyper Lapse minimizes the memory space and saves 2 times more footage.
However, when an event or impact occurs, recording frame rate switches automatically to 30 fps to provide clearer images of important moments.

Long Parking Recording With
LAPSE
Experience continuous Parking Mode recording for a long time with IROAD Time Lapse.
Time Lapse is a low-capacity recording method that minimizes the storage space by compressing and saving at 1fps while in Parking Mode.
However, when an impact or motion is detected during parking, the X10 PRO automatically switches to recording at 30fps, providing clearer images of important moments.
X10 PRO will automatically start an Event recording when motion or impact is detected during parking mode, as well as when impact is detected while driving. Thanks to the BUFFERED recording technology, the Event video will include 10s before and 20s after the event occured.
Event files are saved separately and can be viewed through both the PC Viewer and the corresponding IROAD Mobile App.

RECORDING
By simply pressing the Manual Recording button, generate Event files on request when witnessing a traffic incident or something interesting on the road that you want to make sure you catch on camera. The dash cam records and separately stores 10s before and 20s after the moment the button is pressed.

PARKING MODE WITH MINIMUM POWER CONSUMPTION
SLEEP MODE
IROAD’s new Sleep Mode (Energy Saving) greatly reduces power consumption and provides a longer video recording of the parked vehicle than the original parking mode.
Once the vehicle is parked, the dash cam goes into “sleep” mode.
When an impact is detected, the dash cam wakes up, records a 30 second video which it saves to the SD card, then goes back to “sleep”.

mA |
Hours |
Days |
|
Energy Saving |
10mA |
1100 |
40 |
* Based on 12,000mAH battery (Powerpack Pro 12)
* Variables: Temperature, the efficiency of the battery by usage time, and change in current after a detection.
Alert
Driver Assistance System for Enhanced Safety
ASSISTANCE SYSTEM
The IROAD X10 PRO is equipped with the Road Safety Warning System that provides audio and visual alerts for Lane Departure (LDWS) and Front Vehicle Departure (FVDW). It detects road markings and gives voice warnings to the drivers if the vehicle begins to stray from its lane or when it is at risk of an imminent crash.
The GPS antenna tracks the speed, time, and route history of your vehicle, and enables the dash cam to alert you of upcoming red light cameras and speed cameras too.
LDWS
LDWS operates in a way that the front camera recognizes the road lane in real time and, if the driver falls asleep while driving or drives poorly, causing the car to depart the lane, it will notify about it through the preset warning sound.

FVDW
When the car is stopped at an intersection or in traffic, FVDW informs the driver when the vehicle in front has started to move, preventing delayed departure.

ENJOY A SAFER JOURNEY THROUGH
Speeding tickets and accidents can now be prevented with the help of the Speed Camera Alert function. With an active GPS connection and the latest Cyclops database installed, the dash cam will use voice alerts to inform the driver of any incoming speed cameras and red-light cameras, increasing the overall safety of all traffic participants including vehicles and pedestrians.
* Please make sure to download and install the latest Cyclops database.
Updates are released quarterly.

X11 PRO
Discover various features
The 155° angle lens offer a wide angle of view and minimize blind spots, ensuring all scenes that can be seen through the front windshield are completely recorded.

In order to protect the vehicle battery from discharging, the dash cam detects when the battery’s voltage drops below a set point and automatically shuts down. The voltage cut-off point can be adjusted from the camera’s Settings

Monitor your travel history through the user-friendly Analysis tab within the IROAD app. The intuitive interface provides a clear and comprehensive overview of your dash camera’s route history and event stats, seamlessly integrating map tracking with built-in GPS to visually represent your journeys.



To store images sequentially, there is no need for a separate format which minimizies errors that may occur when saving images, ensuring the life of the memory card and the stability of video recording.
It allows higher compression rates, uses memory space more efficiently, and provides excellent image quality.
Format Free 2.0 is a server storage technology developed by IROAD that maximizes the lifespan, stability, and efficiency of memory cards.

Wi-Fi
Upgraded 5GHz Wi-Fi connection dongle, X11 PRO is able to provide 4 times faster data transfer, ensuring smooth video previewing, downloading, and sharing.

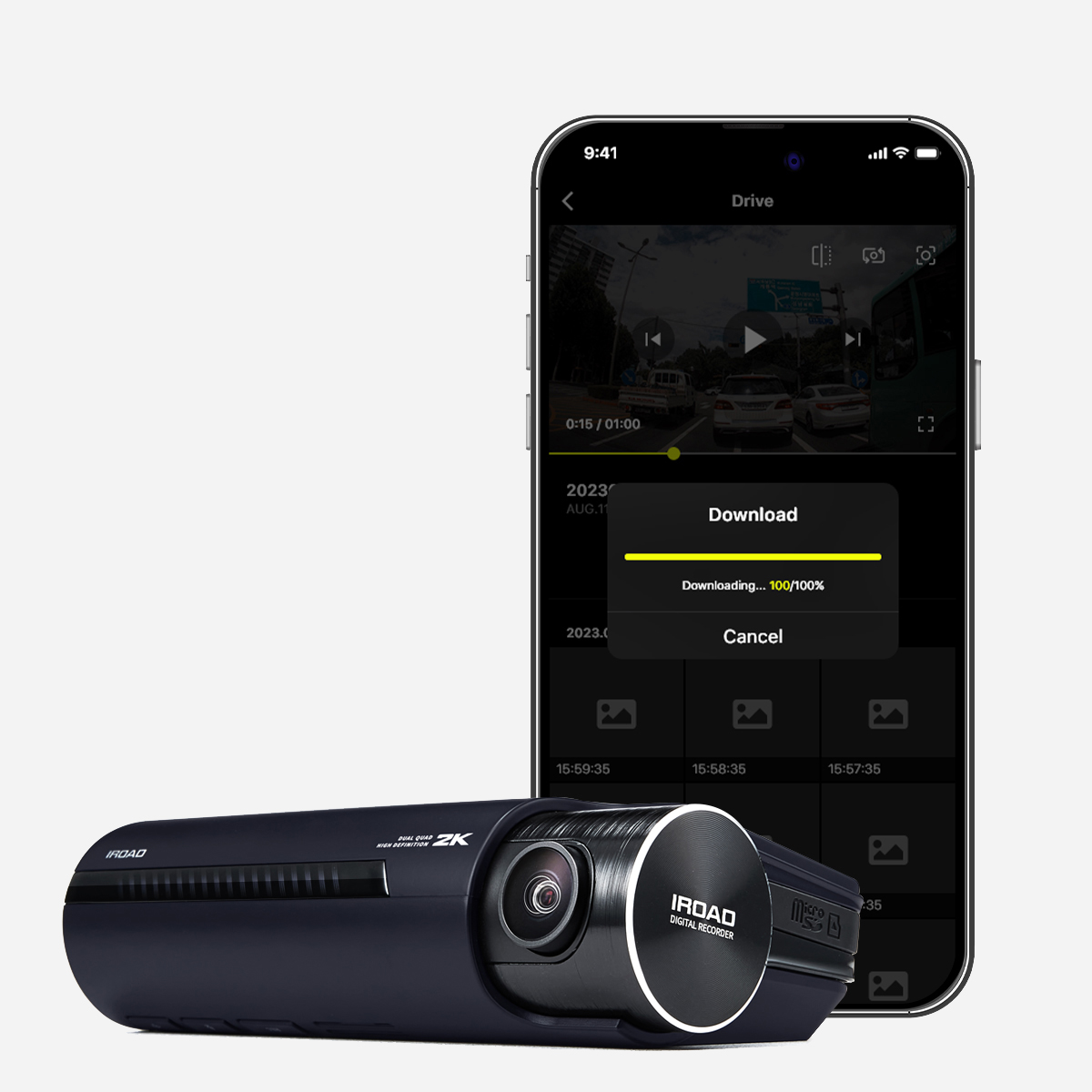

The IROAD DASH CAM APP is free and allows you to save dash cam’s footage as video or images directly to your smartphone. Through the app, you can also access Live View, create backups, upload directly to social media, and perform many other functions, including automatically updating your dash cam’s firmware.
View or configure the dash cam settings
Dash Cam Settings

You can manage the recorded videos using the Wi-Fi
Live viewing, Managing videos

DETAILED SETTINGS AND FOOTAGE INFORMATION
The intuitive and simple-to-use interface of IROAD PC Viewer allows you an easy and convenient viewing of your recorded videos.
Through PC or Mac viewer, you can playback and download recorded videos along with your route history and speed record.

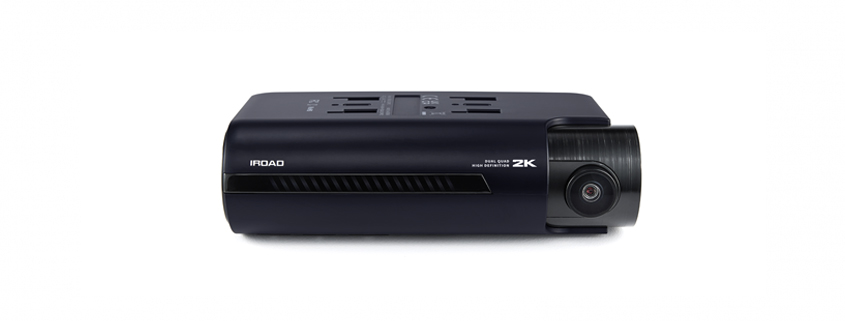

Specifications
Model
IROAD X11 PRO
Resolution / Frame Rate
Front: 1440p QUAD HD @ 30fps / Rear: 1440p QUAD HD @ 30fps
* Hyper-Lapse(Driving Mode) @ 1fps
* Time-Lapse(Parking Mode) @ 1fps
* Impact Recording(30 Seconds) @ 30fps
Image Sensor
Front: Sony STARVIS 2(IMX678) Sensor / Rear: Sony STARVIS 2(IMX335) Sensor
Viewing Angle
Front: Diagonal 155°
Rear: Diagonal 155°
GPS
Built-In GPS
Connectivity
External Wi-Fi (5GHz)
Impact Sensor
3-Axis Accelerometer G-Sensor (3D, ±3G)
Night Vision & HDR
Supported (Front&Rear HDR)
Recording Modes
Driving Recording (Continuous), Impact Recording
Time-lapse Parking Mode (with Impact and Motion Detection,Energy Saving Mode)
Manual Recording
Capacity
MicroSD card up to 256GB
Backup Battery
Built-in Supercapacitor
Input Power
DC 12V/24V
Certifications
FCC, CE, RoHS, UKCA, WEEE
Package Contents
Front Camera
Rear Camera
Wi-Fi Dongle
MicroSD Card
Uninterrupted Fuse Cable
Rear Camera Cable
Quick Guide
Mount with 3M tape
Protective Film
