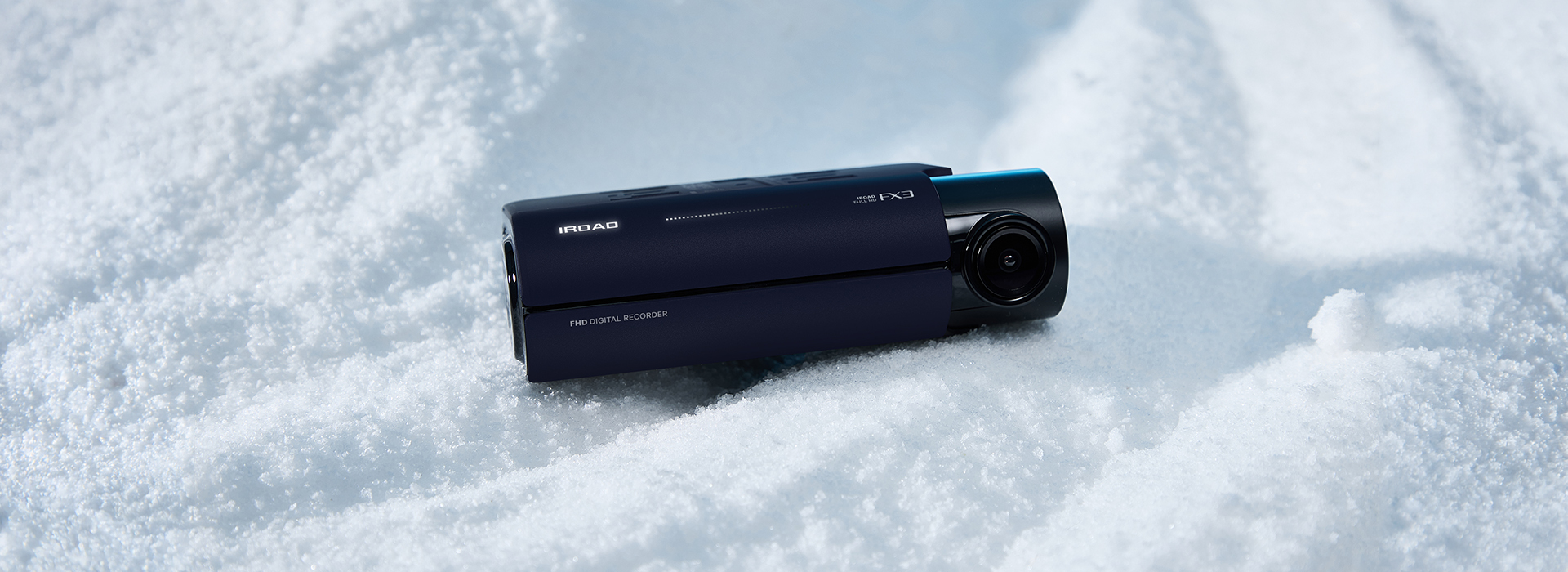

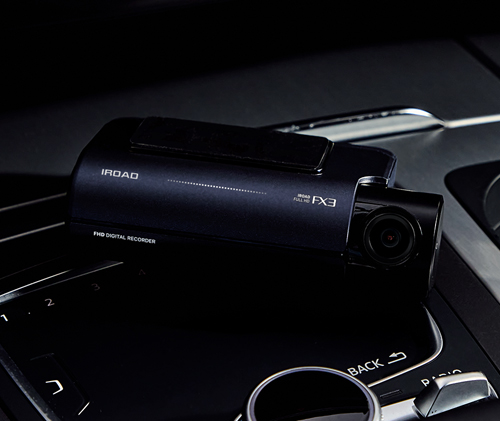

DUAL-FHD DASH CAM
IROAD FX3

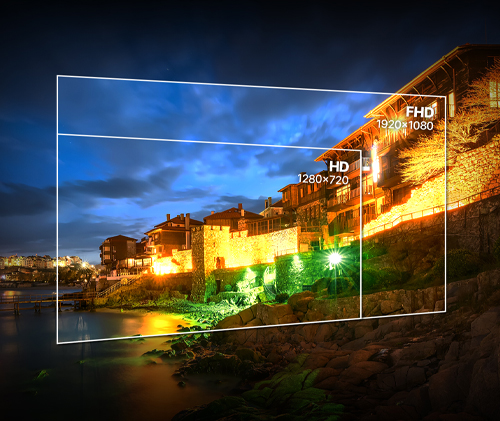

FULL HIGH DEFINITION VIDEO QUALITY
1080p FULL HD RESOLUTION
The Sony STARVIS Image Sensor allows constant FullHD 1080p recording during both daytime and nighttime.
The 140-degree angle lens wide view minimizes blind spots to ensure the recording of all significant events without fail.
By applying the Sony Starvis sensor to the front camera of the IROAD FX3, the image quality has been greatly improved, especially during night recording. The sensor delivers sharper, more vivid colors in FHD images, ensuring excellent image quality even in low light conditions. It’s worth noting that the front and rear cameras record in FHD, providing sharp and detailed footage from both angles.

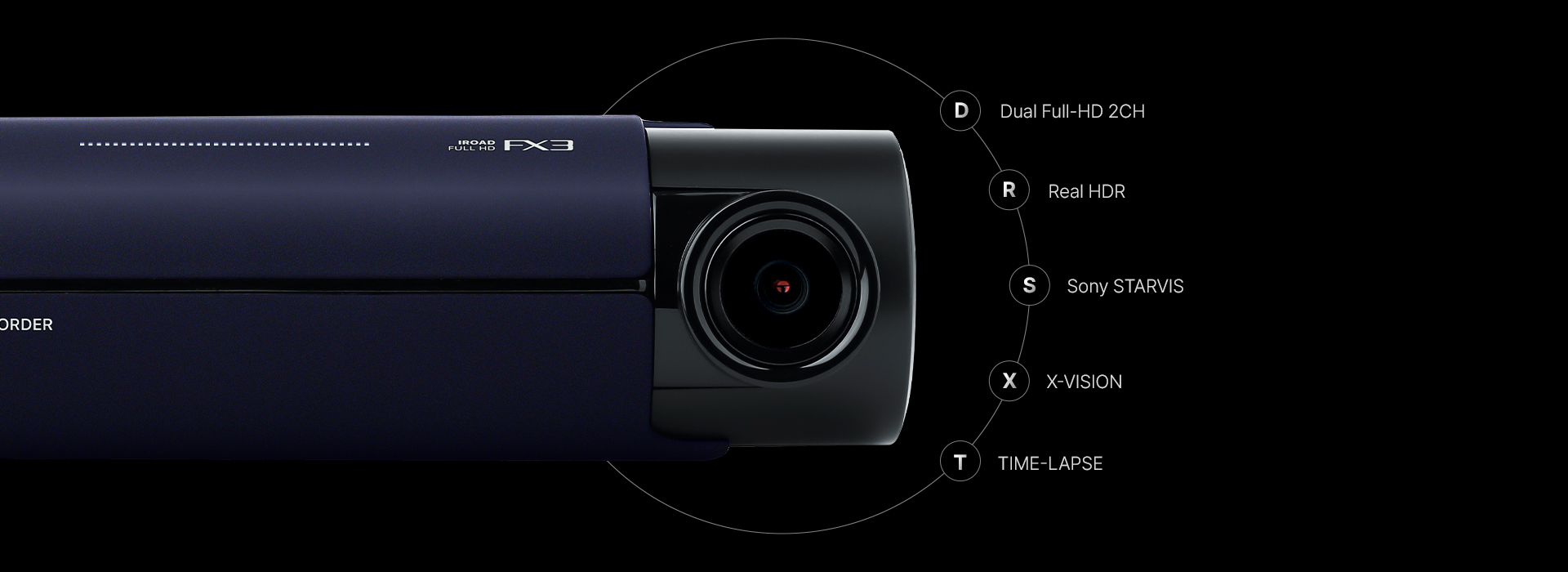

Sony STARVIS IMAGE SENSOR
IROAD FX3 is equipped with a premium Sony STARVIS Image Sensor which guarantees ultimate video sharpness and high nighttime footage quality.
This image sensor is able to provide recordings much brighter and cleaner compared to seeing with bare eyes, even in low light conditions.
⬆ NORMAL
⬆ STARVIS Image sensor
HIGH DYNAMIC RANGE
REAL HDR
ALWAYS SUPPORT CLEAR VIDEO WITH APPLICATION OF REAL HDR
Real HDR technology is integrated to eliminate light blurring while driving at night, producing clear and vivid recordings even in challenging lighting conditions such as backlighting and tunnels. This advanced feature allows the IROAD FX3 to accurately capture the entire dynamic range of a scene, resulting in improved clarity and contrast across the entire video. This makes it an excellent choice for drivers who need reliable and high-quality footage, regardless of the lighting conditions.
⬆ HDR OFF
⬆ HDR ON
NO MORE WORRIES ABOUT STORAGE
4X MORE RECORDING TIME

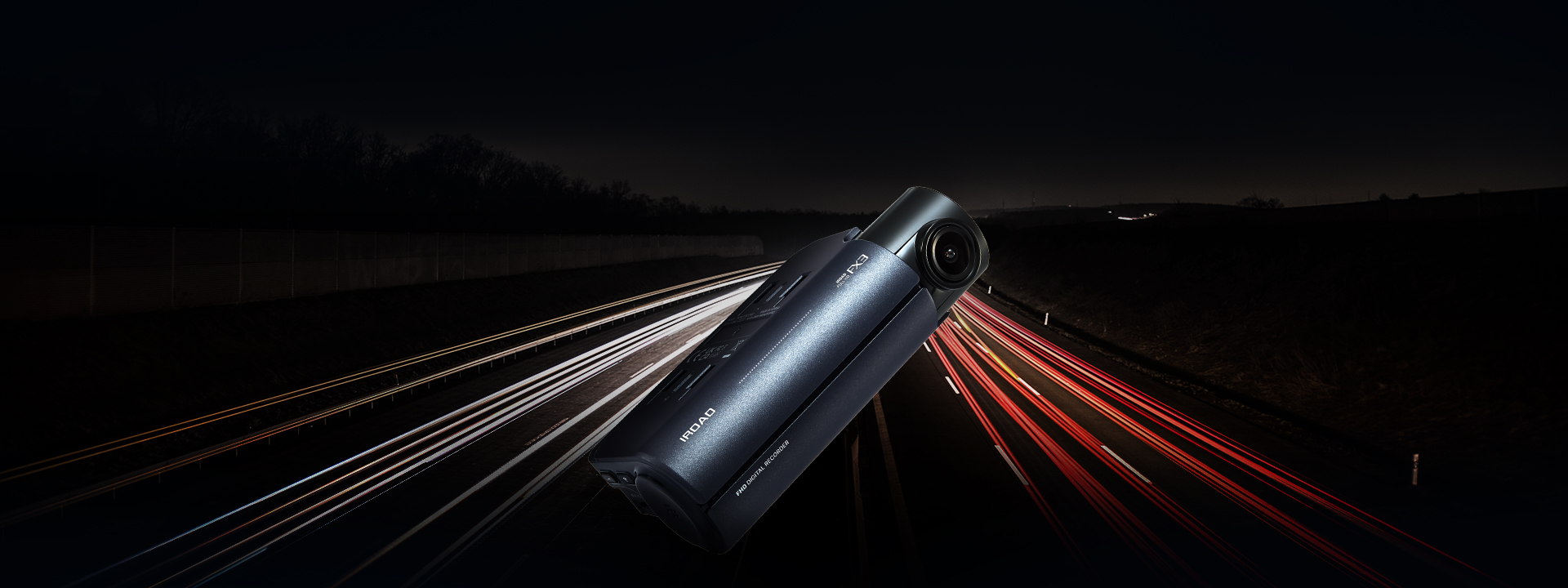

LONG DRIVE RECORDING WITH
HYPER LAPSE
No more worries about missing out while driving long distances
By compressing the recorded video, Hyper Lapse minimizes the memory space and saves 4 times more footage.
However, when an event or impact occurs, recording frame rate switches automatically to 30 fps to provide clearer images of important moments.
LONG PARKING RECORDING WITH
TIME LAPSE
Experience continuous Parking Mode recording for a long time with IROAD Time Lapse.
Time Lapse is a low-capacity recording method that minimizes the storage space by compressing and saving at 1fps while in Parking Mode.
However, when an impact or motion is detected during parking, FX3 automatically switches to recording at 30fps to provide clearer images of the important moments.
BUFFERED IMPACT & MOTION DETECTION
FX3 will automatically start an Event recording when motion or impact is detected during parking mode, as well as when impact is detected while driving. Thanks to the BUFFERED recording technology, the Event video will include 10s before and 20s after the event occured.
Event files are saved separately and can be viewed through both the PC Viewer and the corresponding IROAD Mobile App.
MANUAL RECORDING
*By simply pressing the Manual Recording button, generate Event files on request when witnessing a traffic incident or something interesting on the road that you want to make sure you catch on camera. The dash cam records and separately stores 10s before and 20s after the moment the button is pressed.
PARKING MODE WITH MINIMUM POWER CONSUMPTION
ENERGY SAVING SLEEP MODE
IROAD’s new Sleep Mode (Energy Saving) greatly reduces power consumption and provides a longer video recording of the parked vehicle than the original parking mode.
Once the vehicle is parked, the dash cam goes into “sleep” mode.
When an impact is detected, the dash cam wakes up, records a 30 second video which it saves to the SD card, then goes back to “sleep”.
FX3 Energy Saving Standby Time
mA |
Hours |
Days |
|
Energy Saving |
10mA |
1100 |
40 |
* Based on 12,000mAH battery (Powerpack Pro 12)
* Variables: Temperature, the efficiency of the battery by usage time, and change in current after a detection.
CONNECT THROUGH Wi-Fi

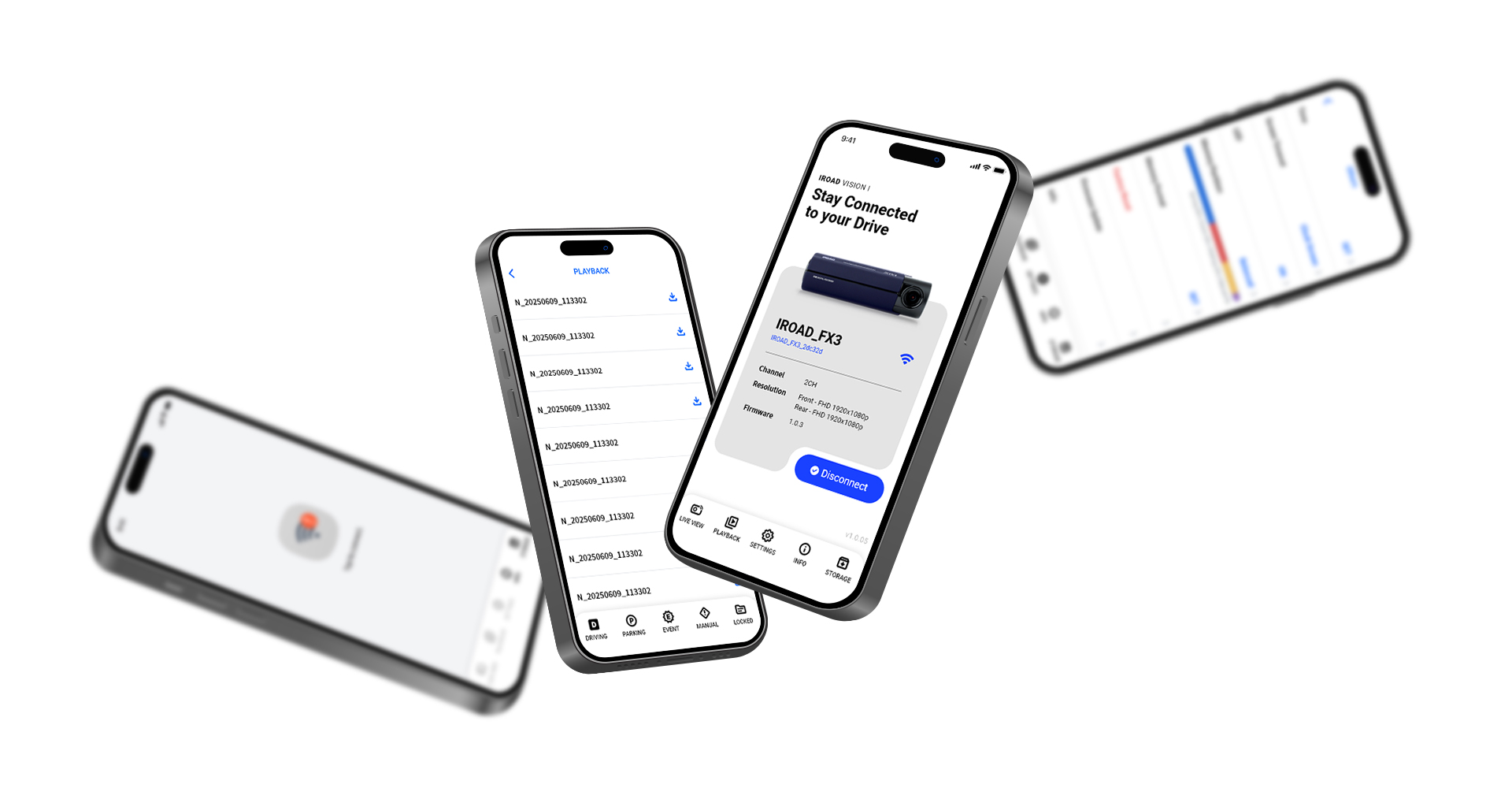

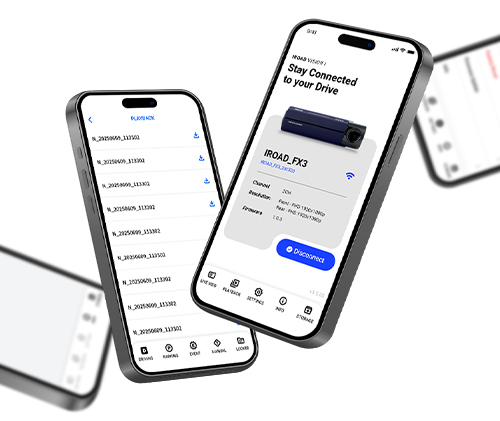

IROAD VISION I APP
[Supported] iOS / Android
DESIGNED FOR THE SMARTER USE OF IROAD DASH CAMS
The IROAD DASH CAM APP is free and allows you to save the dash cam’s footage as video or images directly on your smartphone.
Also through the app you can access Live View, do backups, upload directly to social media and many other things, including automatically updating your dash cam’s firmware.
Search “IROAD VISION I” on Google Play Store and Apple App Store
DETAILED SETTINGS AND FOOTAGE INFORMATION
IROAD PC VIEWER
The intuitive and simple-to-use interface of IROAD PC Viewer allows you an easy and convenient viewing of your recorded videos.
Through PC or Mac viewer, you can playback and download recorded videos along with your route history and speed record.
[Supported] Windows / Mac
WIDE VIEWING ANGLE
140º WIDE ANGLE LENS
The 140 ° angle lens offer a wide angle of view and minimize blind spots, ensuring all scenes that can be seen through the front windshield are completely recorded.
BATTERY DISCHARGE PREVENTION
LBP
In order to protect the vehicle battery from discharging, the dash cam detects when the battery’s voltage drops below a set point and automatically shuts down. The voltage cut-off point can be adjusted from the camera’s Settings.
BUILT-IN GPS
TRAVEL LOG AND ANALYSIS
Monitor your travel history through the user-friendly Analysis tab within the IROAD app. The intuitive interface provides a clear and comprehensive overview of your dash camera’s route history and event stats, seamlessly integrating map tracking with built-in GPS to visually represent your journeys.
COMPREHENSIVE DRIVING DATA THROUGH
BUILT-IN GPS
The GPS data in the IROAD FX2 PRO can precisely pinpoint the vehicle’s location and routes on the map, while also displaying the driving speed. This helps to more accurately assess the situation and the circumstances in case of an accident.
HIGH DURABILITY

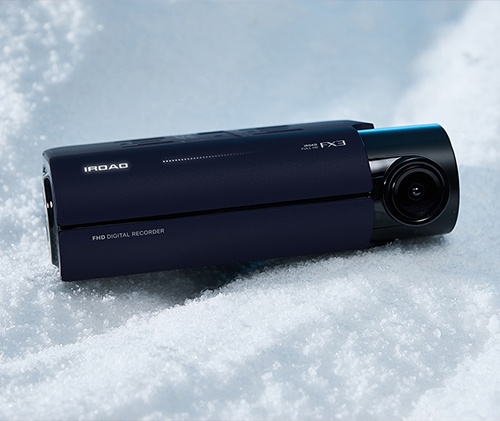

HIGH-TEMPERATURE PROTECTION
The IROAD FX3 model is built to endure both high and low temperatures in order to keep the device running smoothly. The high-temperature protection function makes the device automatically turn off in case of overheating, protecting both the device and the stored data.
HIGH-EFFICIENCY VIDEO CODING FORMAT
FORMAT FREE 2.0
To store images sequentially, there is no need for a separate format by minimizing errors that may occur when saving images, ensuring the life of the memory card and the stability of video recording.
It allows higher compression rates, uses memory space more efficiently, and provides excellent image quality.
Format Free 2.0 is a server storage technology developed by IROAD that maximizes the lifespan, stability, and efficiency of memory cards.
IROAD FX3
SPECIFICATIONS
Model |
IROAD FX3 PRO |
|---|---|
Resolution / Frame Rate |
Front-1080p Full HD @ 30fps / Rear1080p Full HD @ 30fps* Hyper-Lapse(Driving Mode) @ 1fps* Time-Lapse(Parking Mode) @ 1fps* Impact Recording(30 Seconds) @ 30fps |
Image Sensor |
Front: Sony STARVIS(IMX307) Sensor / Rear: 2.0MPixel CMOS Sensor |
Viewing Angle |
Diagonal 140° |
GPS |
Bulit-In GPS |
CONNECTIVITY |

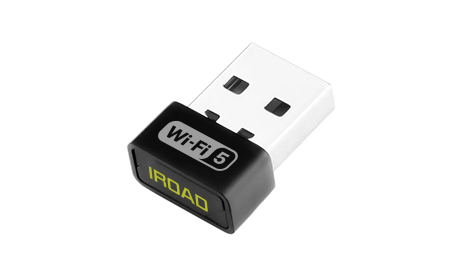

External Wi-Fi (5 GHz) |
Impact Sensor |
3-Axis Accelerometer G-Sensor (3D, ±3G) |
Recording Modes |
Driving Recording (Continuous), Impact RecordingTime-lapse Parking Mode (with Impact and Motion Detection)Manual Recording |
Backup Battery |
Built-in Supercapacitor |
Capacity |
microSD card up to 512GB |
Input Power |
DC 12V~24V |
Certifications |
FCC, CE, RoHS, UKCA, WEEE, E-Mark |
IROAD FX3
Package Contents
Front Camera- |
Rear Camera- |

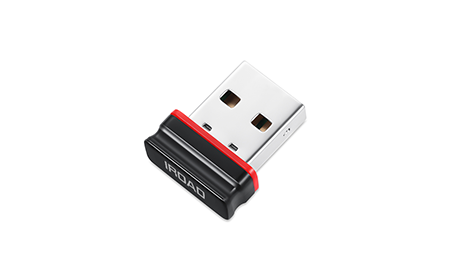

Wi-Fi Dongle- |
MicroSD Card- |
Uninterrupted Fuse Cable- |
Rear Camera Cable- |
Quick Guide- |
Mount with 3M tape(1ea)- |

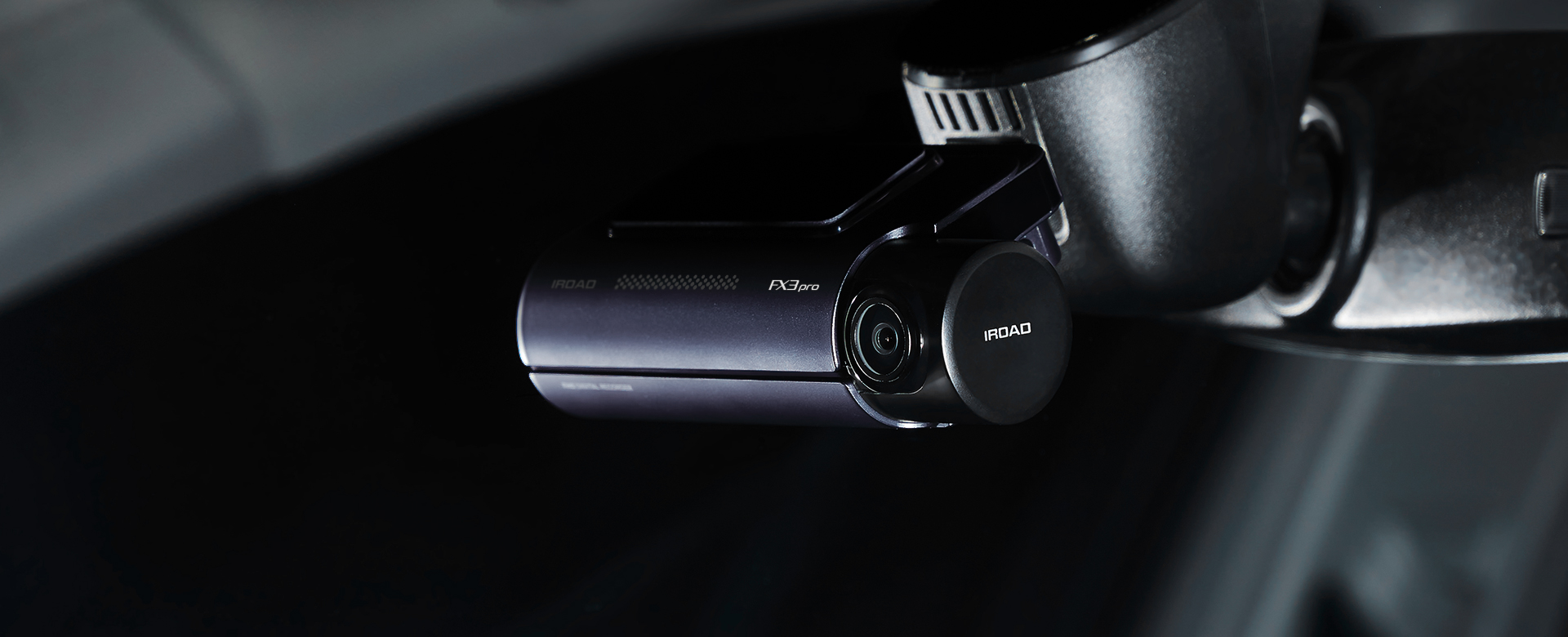

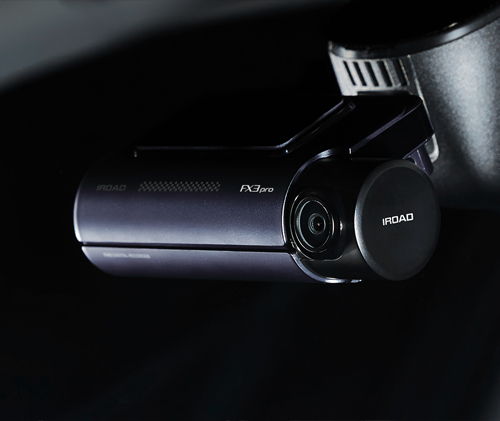

DUAL-FHD DASH CAM
IROAD FX3
FULL HIGH DEFINITION VIDEO QUALITY
1080p FULL HD RESOLUTION
The Sony STARVIS Image Sensor allows constant FullHD 1080p recording during both daytime and nighttime.
The 140-degree angle lens wide view minimizes blind spots to ensure the recording of all significant events without fail.
By applying the Sony Starvis sensor to the front camera of the IROAD FX3, the image quality has been greatly improved, especially during night recording. The sensor delivers sharper, more vivid colors in FHD images, ensuring excellent image quality even in low light conditions. It’s worth noting that the front and rear cameras record in FHD, providing sharp and detailed footage from both angles.
Sony STARVIS IMAGE SENSOR
IROAD FX3 is equipped with a premium Sony STARVIS Image Sensor which guarantees ultimate video sharpness and high nighttime footage quality.
This image sensor is able to provide recordings much brighter and cleaner compared to seeing with bare eyes, even in low light conditions.
⬆ NORMAL
⬆ STARVIS Image sensor
HIGH DYNAMIC RANGE
REAL HDR
ALWAYS SUPPORT CLEAR VIDEO WITH APPLICATION OF REAL HDR
Real HDR technology is integrated to eliminate light blurring while driving at night, producing clear and vivid recordings even in challenging lighting conditions such as backlighting and tunnels. This advanced feature allows the IROAD FX3 to accurately capture the entire dynamic range of a scene, resulting in improved clarity and contrast across the entire video. This makes it an excellent choice for drivers who need reliable and high-quality footage, regardless of the lighting conditions.
⬆ HDR OFF
⬆ HDR ON
NO MORE WORRIES ABOUT STORAGE
4X MORE RECORDING TIME

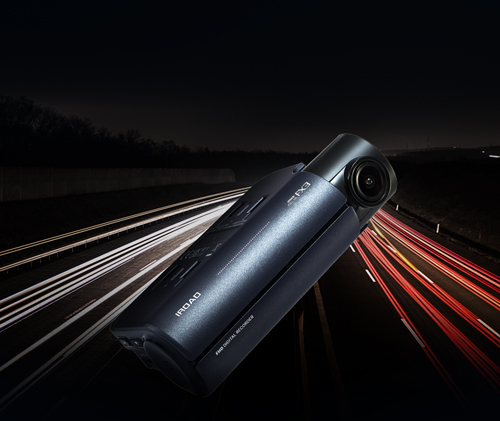

LONG DRIVE RECORDING WITH
HYPER LAPSE
No more worries about missing out while driving long distances
By compressing the recorded video, Hyper Lapse minimizes the memory space and saves 4 times more footage.
However, when an event or impact occurs, recording frame rate switches automatically to 30 fps to provide clearer images of important moments.
LONG PARKING RECORDING WITH
TIME LAPSE
Experience continuous Parking Mode recording for a long time with IROAD Time Lapse.
Time Lapse is a low-capacity recording method that minimizes the storage space by compressing and saving at 1fps while in Parking Mode.
However, when an impact or motion is detected during parking, FX3 PRO automatically switches to recording at 30fps to provide clearer images of the important moments.
BUFFERED IMPACT & MOTION DETECTION
FX3 PRO will automatically start an Event recording when motion or impact is detected during parking mode, as well as when impact is detected while driving. Thanks to the BUFFERED recording technology, the Event video will include 10s before and 20s after the event occured.
Event files are saved separately and can be viewed through both the PC Viewer and the corresponding IROAD Mobile App.
MANUAL RECORDING
*By simply pressing the Manual Recording button, generate Event files on request when witnessing a traffic incident or something interesting on the road that you want to make sure you catch on camera. The dash cam records and separately stores 10s before and 20s after the moment the button is pressed.
PARKING MODE WITH MINIMUM POWER CONSUMPTION
ENERGY SAVING SLEEP MODE
IROAD’s new Sleep Mode (Energy Saving) greatly reduces power consumption and provides a longer video recording of the parked vehicle than the original parking mode.
Once the vehicle is parked, the dash cam goes into “sleep” mode.
When an impact is detected, the dash cam wakes up, records a 30 second video which it saves to the SD card, then goes back to “sleep”.
FX3 PRO Energy Saving Standby Time
mA |
Hours |
Days |
|
EnergySaving |
10mA |
1100 |
40 |
* Based on 12,000mAH battery (Powerpack Pro 12)
* Variables: Temperature, the efficiency of the battery by usage time, and change in current after a detection.
CONNECT THROUGH Wi-Fi

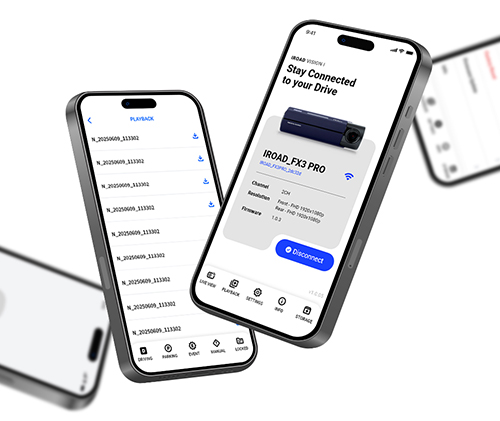

IROAD VISION I APP
[Supported] iOS / Android
DESIGNED FOR THE SMARTER USE OF IROAD DASH CAMS
The IROAD DASH CAM APP is free and allows you to save the dash cam’s footage as video or images directly on your smartphone.
Also through the app you can access Live View, do backups, upload directly to social media and many other things, including automatically updating your dash cam’s firmware.
Search “IROAD VISION I” on Google Play Store and Apple App Store
DETAILED SETTINGS AND FOOTAGE INFORMATION
IROAD PC VIEWER
The intuitive and simple-to-use interface of IROAD PC Viewer allows you an easy and convenient viewing of your recorded videos.
Through PC or Mac viewer, you can playback and download recorded videos along with your route history and speed record.
[Supported] Windows / Mac
WIDE VIEWING ANGLE
140º WIDE ANGLE LENS
The 140 ° angle lens offer a wide angle of view and minimize blind spots, ensuring all scenes that can be seen through the front windshield are completely recorded.
BATTERY DISCHARGE PREVENTION
LBP
In order to protect the vehicle battery from discharging, the dash cam detects when the battery’s voltage drops below a set point and automatically shuts down. The voltage cut-off point can be adjusted from the camera’s Settings.
BUILT-IN GPS
TRAVEL LOG AND ANALYSIS
Monitor your travel history through the user-friendly Analysis tab within the IROAD app. The intuitive interface provides a clear and comprehensive overview of your dash camera’s route history and event stats, seamlessly integrating map tracking with built-in GPS to visually represent your journeys.
COMPREHENSIVE DRIVING DATA THROUGH
BUILT-IN GPS
The GPS data in the IROAD FX3 PRO can precisely pinpoint the vehicle’s location and routes on the map, while also displaying the driving speed. This helps to more accurately assess the situation and the circumstances in case of an accident.
HIGH DURABILITY
HIGH-TEMPERATURE PROTECTION
The IROAD FX3 PRO model is built to endure both high and low temperatures in order to keep the device running smoothly. The high-temperature protection function makes the device automatically turn off in case of overheating, protecting both the device and the stored data.
HIGH-EFFICIENCY VIDEO CODING FORMAT
FORMAT FREE 2.0
To store images sequentially, there is no need for a separate format by minimizing errors that may occur when saving images, ensuring the life of the memory card and the stability of video recording.
It allows higher compression rates, uses memory space more efficiently, and provides excellent image quality.
Format Free 2.0 is a server storage technology developed by IROAD that maximizes the lifespan, stability, and efficiency of memory cards.
IROAD FX3 PRO
Specifications
Model |
IROAD FX3 PRO |
|---|---|
Resolution / Frame Rate |
Front-1080p Full HD @ 30fps / Rear1080p Full HD @ 30fps* Hyper-Lapse(Driving Mode) @ 1fps* Time-Lapse(Parking Mode) @ 1fps* Impact Recording(30 Seconds) @ 30fps |
Image Sensor |
Front: Sony STARVIS(IMX307) Sensor / Rear: 2.0MPixel CMOS Sensor |
Viewing Angle |
Diagonal 140° |
GPS |
Bulit-In GPS |
CONNECTIVITY |
External Wi-Fi (5 GHz) |
Impact Sensor |
3-Axis Accelerometer G-Sensor (3D, ±3G) |
Recording Modes |
Driving Recording (Continuous), Impact RecordingTime-lapse Parking Mode (with Impact and Motion Detection)Manual Recording |
Capacity |
microSD card up to 512GB |
Input Power |
DC 12V~24V |
Certifications |
FCC, CE, RoHS, UKCA, WEEE, E-Mark |
IROAD FX3 PRO
Package Contents
Front |
Rear |
Wi-Fi |
MicroSD |
Uninterrupted |
Rear Camera |
Quick |
Mount with |
OBD Power
|
