REMARKABLE FHD

FRONT & REAR VIEW FULL HD RECORDINGS

IROAD DASH CAM
X9

Front Image Sensor
SONY STARVIS
Rear Image Sensor
SONY Exmor
Intelligent
NIGHT VISION
Front - FHD
Rear - FHD
Road Safety
Warning System
WIFI Connection
& IROAD App
Rotatable Lens
90º
2.9W
Minimum Power
150º
Wide Angle
Battery Discharge
Prevention
Front - 30fps
Rear - 30fps
Format Free
Auto Recovery

Outstanding Visibility under the Starlight

STARVIS

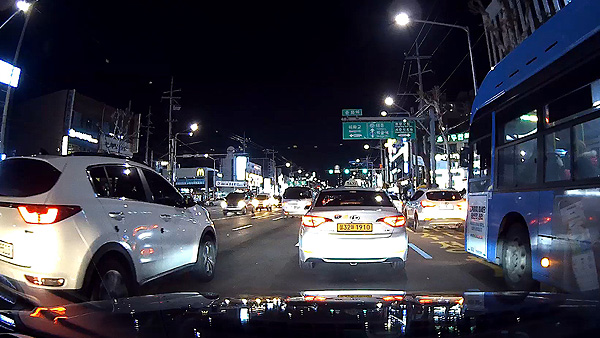

SONY STARVIS IMAGE SENSOR

Premium sensor that guarantees the ultimate sharpness and night image quality with SONY SARVIS image sensor
IROAD X9 is equipped with Sony Starvis image sensor to record the brightest and the cleanest images even in low light environments; it provides a much brighter and clearer image compared to seeing with bare eyes.

⬆ SONY STARVIS VIDEO

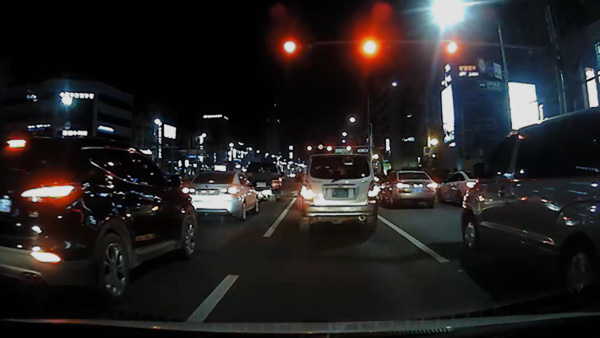

⬆ Normal Image sensor

STARVIS Image sensor

X-VISION

Intelligent NIGHT VISION for IROAD

In parking mode, the surrounding brightness is automatically diagnosed within 5 seconds and the recording brightness will be set to 3 times higher when the surrounding illumination is low. It can record bright and clear images not only in parking mode but also in driving mode.

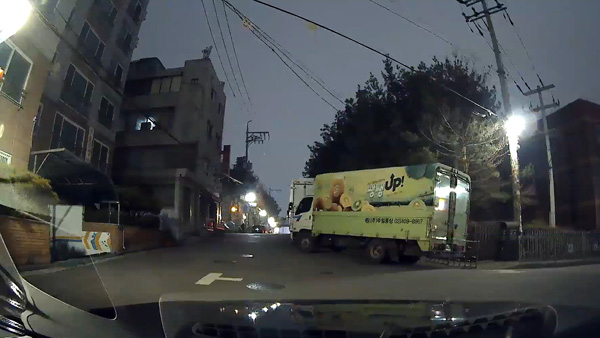

⬆ X-VISION VIDEO

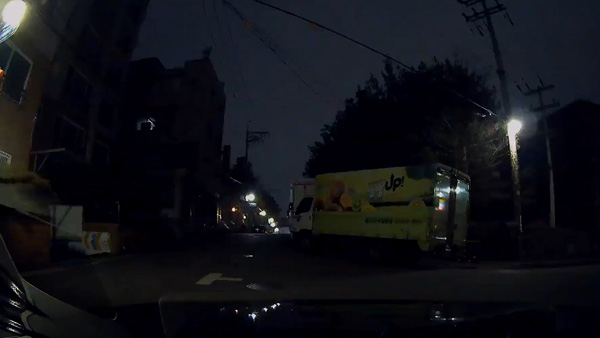

⬆ Normal parking mode

X-VISION parking mode

REMARKABLE FHD

FRONT & REAR VIEW FULL HD RECORDINGS

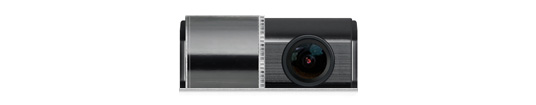

Front Camera – IROAD X9
SONY STARVIS
Full HD 1920x1080
30 Frames
150º Angle
Rear Camera – IROAD X9
SONY Exmor
Full HD 1920x1080
30 Frames
145º Angle

Advance Driver
Assistance Systems

The IROAD X9 is
equipped with the Road Safety Warning System that provides audio and visual alerts for Lane Departure (LDWS), Front Collision (FCWS) and Front Vehicle Departure (FVDW).

It detects road markings and gives voice warnings to the drivers if the vehicle begins to stray from its lane or when it is at risk of an imminent crash.

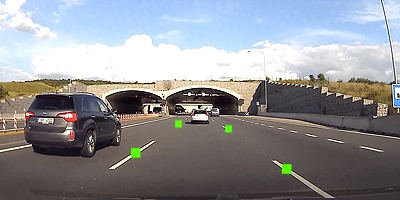

LDWS

Lane departure warning system

LDWS operates in a way that the front camera recognizes the road lane in real time and, if the driver falls asleep while driving or drives poorly, causing the car to depart the lane, it will notify about it through the preset warning sound.

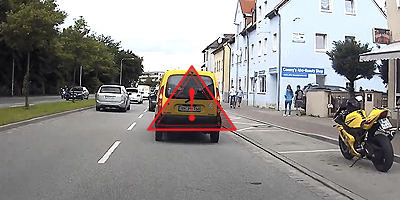

FCWS

Forward collusion warning system

The FCWS function calculates the average distance from the vehicle in front and alerts the driver in advance when reaching the range of safe breaking distance in order to prevent a collision.

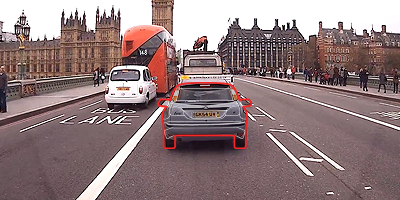

FVDW

Front Vehicle Departure Warning

Front Vehicle Departure Warning is for generating an warning upon start of a vehicle in front of the subject vehicle guring stop and waiting for a signal. intelligent smart system for driver’s convenience

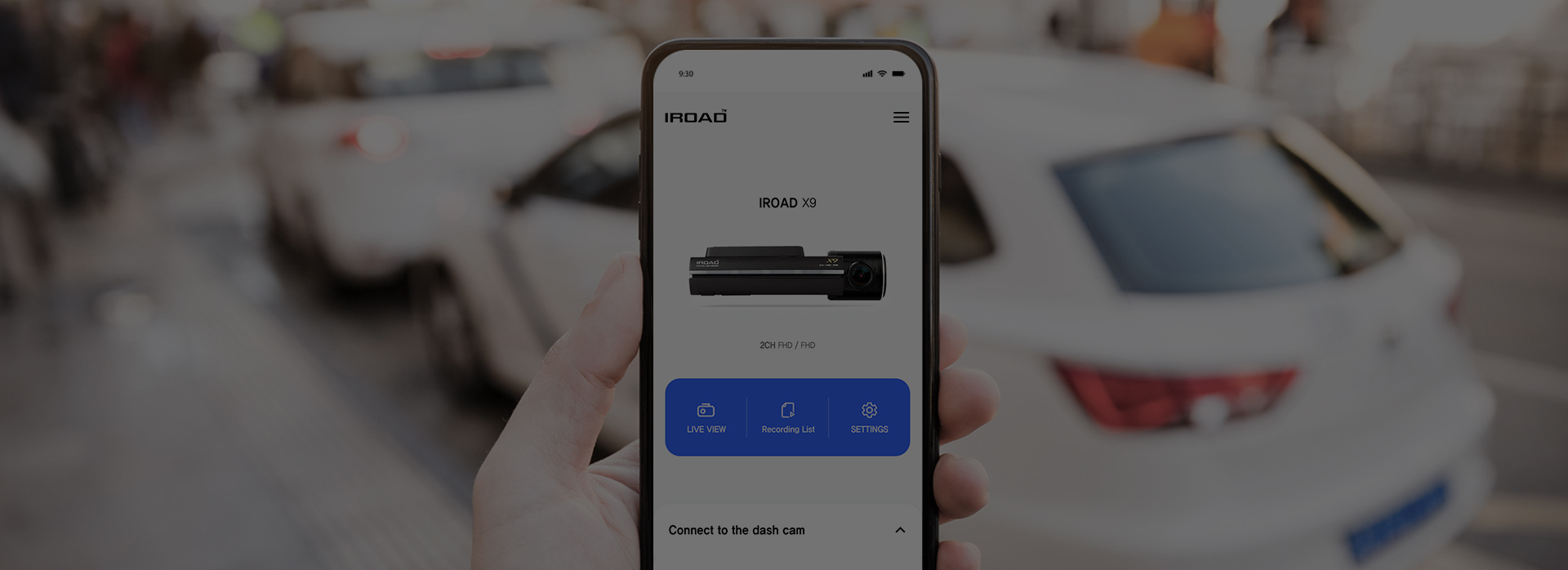

Easy to WI-FI Connect

check playback videos anytime & anywhere
view – all through one app. Get it Free now

[Supported] iOS / Android

The IROAD SMART VIEW is free and allows you to save the dash cam’s footage as video or images directly on your smartphone.
Also through the app you can access Live View, do backups, upload directly to social media and many other things, including automatically updating your dash cam’s firmware.

⬆ MAIN – IROAD SMART VIEW

⬆ RECORDING – IROAD SMART VIEW

Search “IROAD” on Google Play Store and Apple App Store

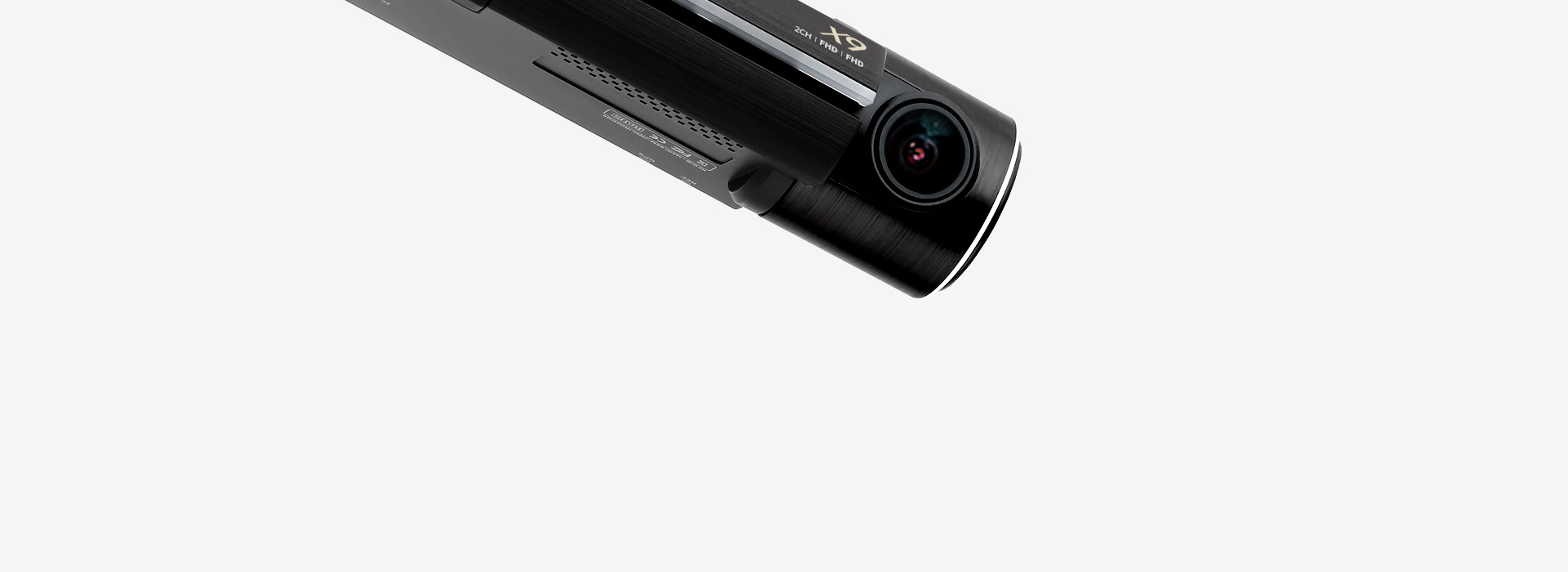

2.9W

The minimum electricity consumption
2.9W (2CH basis)


The half of electric consumption is in lesser need than other products since it releases heat from electric circuit
2CH basis(12V, LCD OFF basis) : 2.9W

Continuous Recording Mode

When the car engine is started, the device is automatically turned on and starts recording on driving mode.

Event Recording Mode

During parking or driving, when a motion & Impact is detected within the vehicle, it will automatically start an event recording.

Motion detection & Parking Mode

Safe parking to support the recording mode to protect the vehicle, even when parked.
advanced parking mode, the engine starts up automatically once it is detected by the car
Front and rear camera automatically detects movement before any motion.

FORMAT FREE

The most stable system

The file system improved in stability by utilizing the JDR system. Recordings are automatically saved in a main memory unit and is much safer than previously-used formats. JDR format does not require formatting regularly and automatic rebooting function guarantees the safety of the device and data.

DATA RECOVERY

Auto recovery system

Saved images can be memorized and restored with the auto recovery system. In addition, by allocating the data to a certain size, the user can arbitrarily adjust the data to be recorded and allocate space according to the size.

LBP

Battery Discharge Prevention Function

For the purpose of battery protection, automatically detects and cuts off voltage when the voltage drops below certain point. Once initiated, recording is stopped and power is turned off. The motion detection function is effective for saving battery.

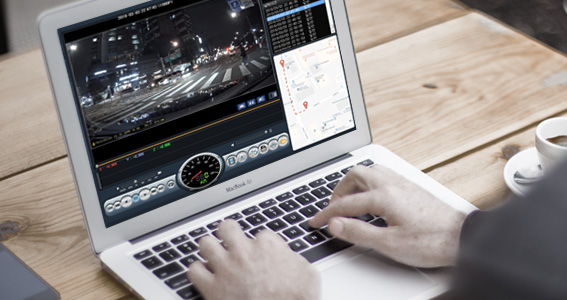

PC Viewer

The file system improved in stability by utilizing the JDR system. Recordings are automatically saved in a main memory unit and is much safer than previously-used formats. JDR format does not require formatting regularly and automatic rebooting function guarantees the safety of the device and data.

GPS

Synched with google map, the external GPS keeps track of traveling speed,
records driving information and supports ADAS function.

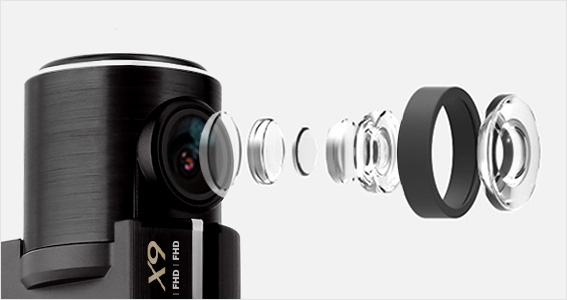

All Glass Lens

More Stable at Higher Temperature

Equipped with All Glass lens, that will not warp under high or low temperature. Optimized image quality is presented with All Glass lens

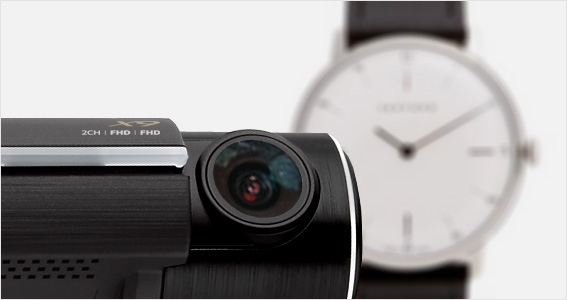

Automatic Rebooting

Automatically reboot device at the specified time.It will check for memory card errors and organize the recorded data.

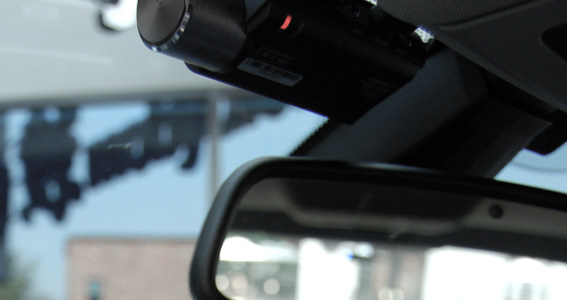

Voice Recording

More Stable at Higher Temperature

Equipped with All Glass lens, that will not warp under high or low temperature. Optimized image quality is presented with All Glass lens

Smart Update

Firmware, viewer and application can be updated through the server.Check the version by connecting to the smartphone via Wi-Fi,check for new firmware and update it.

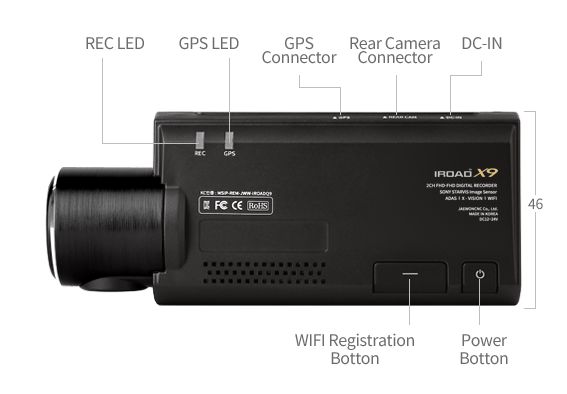

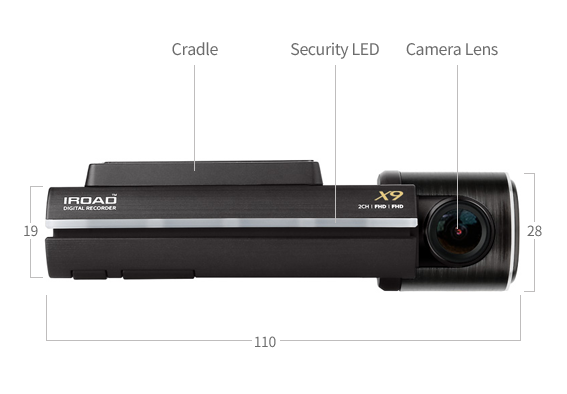

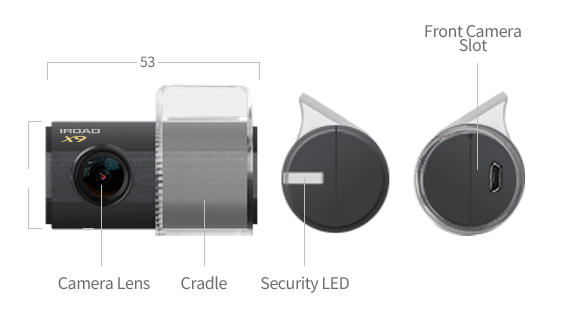

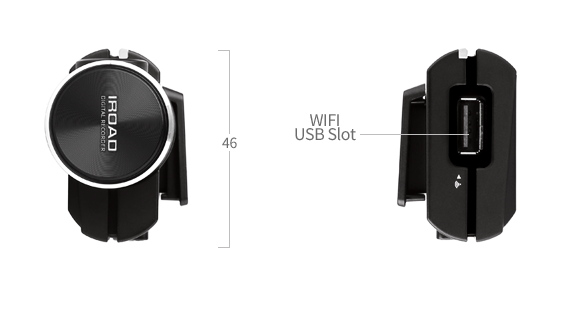

ABOUT THE DEVICE

IROAD X9

GENERAL SPECIFICATIONS

IROAD X9

Dimension 110 x 48 x 20 mm Weight 83g

DETAILED SPECIFICATIONS

IROAD X9

Camera Front : SONY STARVIS 2.13M Rear : SONY Exmor 2.0M
Resolution Front & Rear: Full HD (1920 x 1080P)
Frame Front & Rear: 30fps
Degrees Front : 150º Rear : 145º
CPU ARM Cortex-A7 MP Core Processor V3
X-VISION In parking mode, set automatically brightness 3 times more
Wi-Fi Smartphone playback/settings, Firmware automatic upgrade
ADAS LDWS(Lane departure warning system) FCWS(Forward collusion warning system) FVDW(Front Vehicle Departure Warning)
LBP Cut-off and booting voltage settings(Constant power)
G Sensor Axis Accelerometer G-Sensor (3D, ±3G)
GPS External GPS Antenna ((In conjunction with Google Maps to check the location and speed)
Capacity Micro SD 4GB ~ 128GB (recommended type MLC Class10)
Recording Modes Normal(driving)mode, Event(impact)mode, Parking(Motion Detection) mode, Voice recording
Audio Speaker (effect sound for informing operational status and 34 kinds of voice guidance voice guidance supported),Microphone embedded
Video H.264 / ADPCM
Temperature -30 ~ 80 º C (Storage temperature : -30 ~ 90 º C)
Humidity 10 ~ 95%
ETC Security LED / Operation Status LED/ GPS Receiver LED
PC viewer Windows Xp, VISTA, Win7, Win8 (32Bit ~ 64Bit support)
Application IROAD App (Android 2.3, iOS 5.0 or higher version)

WHAT’S IN THE BOX

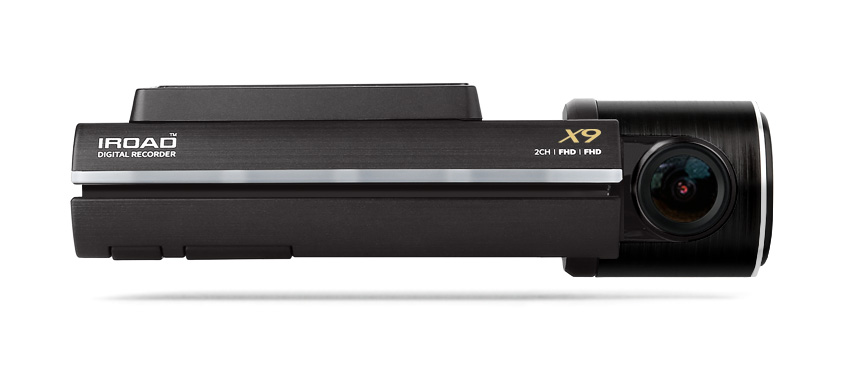

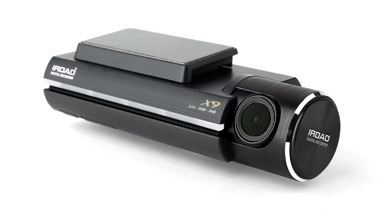

Front Camera

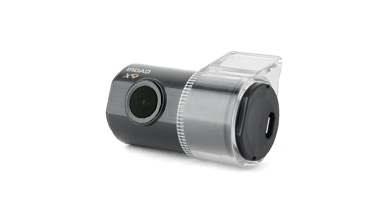

Rear Camera

Wi-Fi Dongle

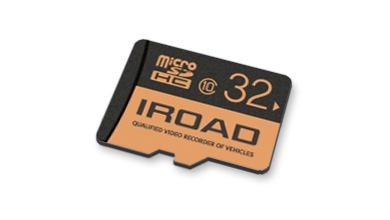

IROAD Genuine MicroSD 32GB

Uninterrupted Fuse Cable

Rear Camera Cable

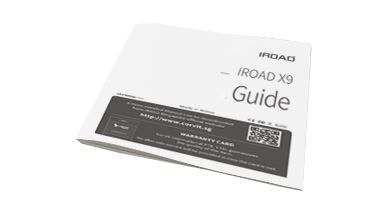

User Manual

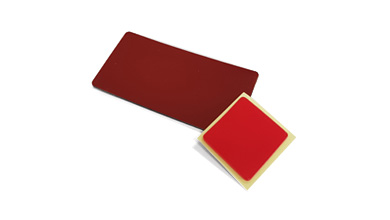

Extra Double-sided Tape

OPTIONAL

IROAD Genuine MicroSD 64GB

External GPS Antenna

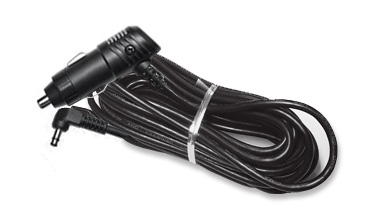

Cigar Jack Power Cable
