STAY PROTECTED, SUSTAINABLE POWER SUPPLY
RAPID CHARGING, THE ALL NEW BATTERY PACK
SECOND GENERATION INTELLIGENCE BMS
Providing more intelligent security with Battery Management System.
RAPID CHARGING
SUSTAINABLE EXTERNAL BATTERY

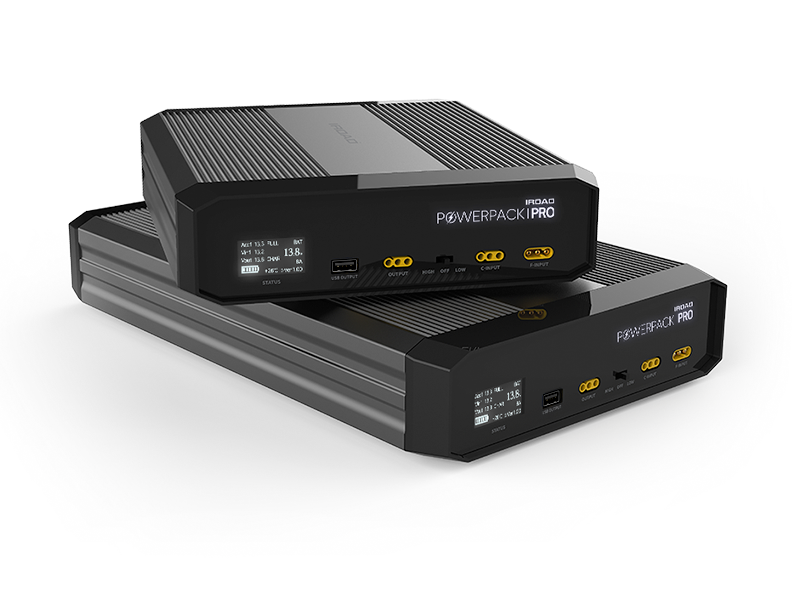

The IROAD powerpack pro, which is designed with LiFePO4 (Lithium Iron Phosphate),
applies a quick charging tech that affects no life span of the battery.
So, it can be used up to 56 hours with 90 mins charging only.
MULTIPLE SAFETY LOCK SYSTEM
DOUBLE PROTECTION SYSTEM FOR HIGH TEMPERATURE, OVERCHARGE AND OVERVOLTAGE
SHORT-CIRCUIT PROTECTION / CELL BALANCING
It automatically cuts off the power for security matter after inspecting the battery’s temperature.
It accurately controls the voltage and balance between cells safely with the circuits designed to prevent overcharge and overvoltage.
LiFePO4 (Lithium Iron Phosphate) battery, which has a 3 times longer lifespan than Lithium-ion and nickel-based batteries, has excellent stability against fire and explosion, and can be charged more than 2000 times.
ABLE TO CHECK YOUR BATTERY STATE IN REAL-TIME.

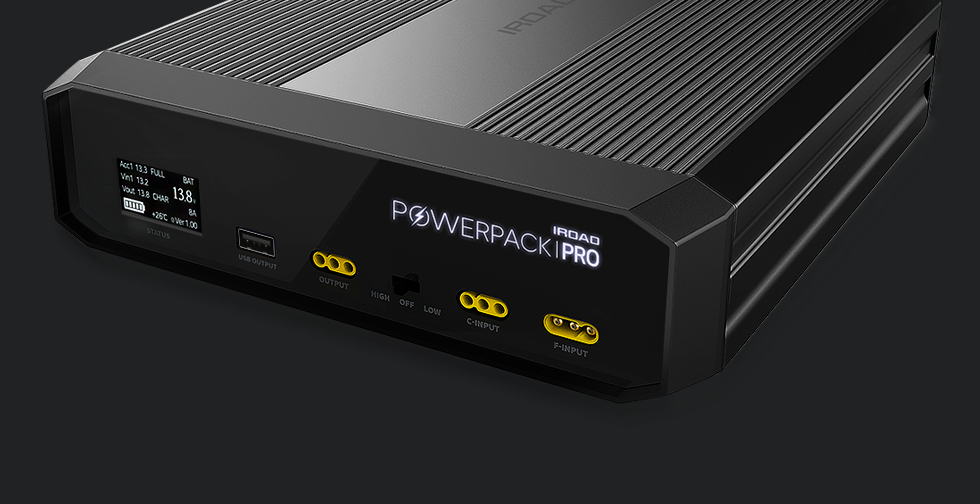

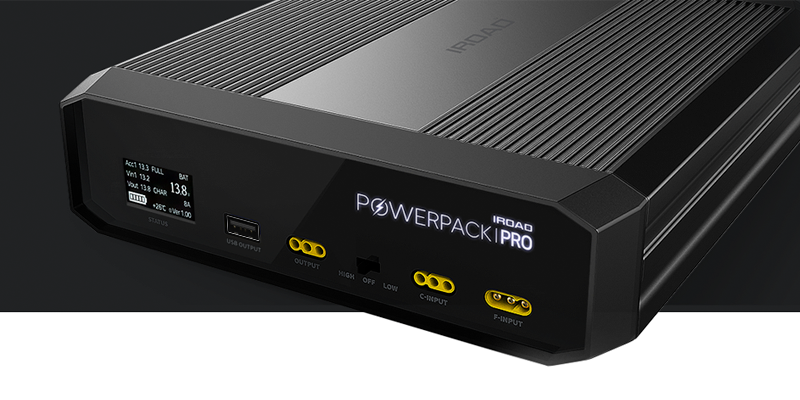

Able to see the charging and battery state through OLED Display.
The operation status can be checked intuitively through the light-emitting LED.
CHECK THE INSTALLATION ERRORS FOR THE SAFETY
If the cable is not connected properly, you are required to inspect your battery state and follow the guides below.
While ignition is on, If the Vin1 value is displayed but ACC1 value is not, please check the ACC line installation.
While ignition is on, If the ACC1 is displayed, but Vin1 value is not, please check whether it is same after removing output cable.
If the OLED is displayed after removing the output cable, a short-circuit is suspected in the output cable.
Please check the uninterrupted fuse cable or connection.

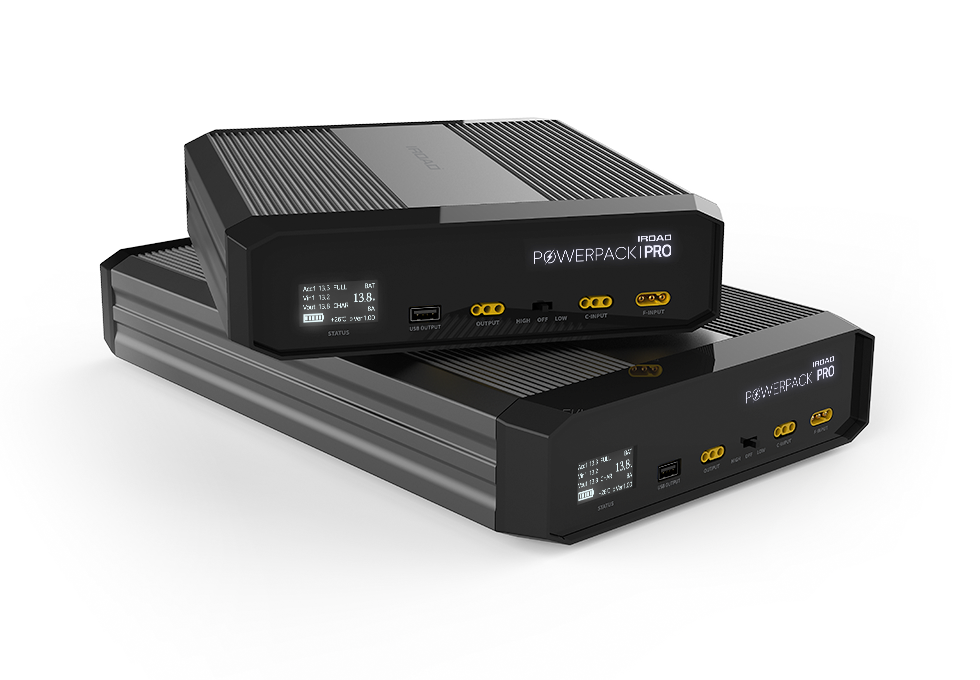

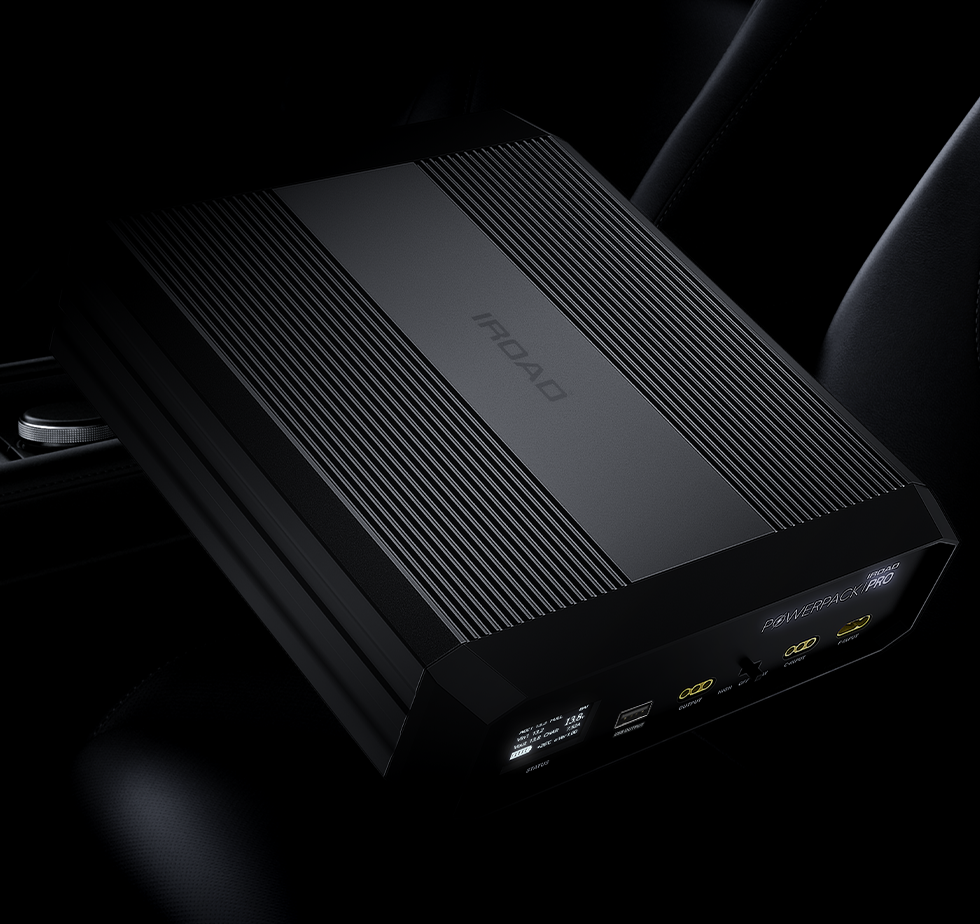

COMPRESSED ALUMINUM FULL-CASE & SIMPLE SLIM DESIGN
The heat dissipation system has been reinforced through the aluminum compression case, and upgraded durability and sturdy with sanding-treated exterior material.
Slim designed IROAD Powerpack Pro is adaptable to be installed in any circumstance.
USB OUTPUT PORT
Powerpack PRO can also be used to charge other devices by using the USB output port. This includes all mobile devices which can be charged through an USB-A Type cable, such as smartphones, earphones and others.
Besides charging, you can also use the USB port to plug in and power 3rd party LTE USB modems, enabling an in-car Wi-Fi internet connection. This connection can be used to connect Cloud-compatible IROAD dash cameras to the IROAD Cloud service.
SPECIFICATIONS
PRODUCT NAME |
IROAD POWERPACK PRO 6 |
IROAD POWERPACK PRO 12 |
---|---|---|
PRODUCT DIMENSIONS |
160 x 183 x43 mm / 1.2KG |
160 x 254 x43 mm / 2KG |
BATTERY TYPE |
LiFePO4(Lithium iron phosphate) |
|
BATTERY CAPACITY |
12.8V I 6,000mAh I 76Wh |
12.8V I 12,000mAh I 153Wh |
INPUT VOLTAGE |
12~18V I 12A Max |
|
OUTPUT VOLTAGE |
12~14.2V I 2A Max |
|
CHARGING VOLTAGE |
LOW (Normal charging mode) 14.2V I 4A (Cigar jack type)HIGH (Fast charging mode) 14.2V I 8A (Hardwiring type) |
|
CHARGING TIME |
LOW (Normal charging mode) : 90 mins (90% charge, 4A)HIGH (Fast charging mode) : 45 mins (90% charge, 8A) |
LOW (Normal charging mode) : 3 hour(90% charge, 4A)HIGH (Fast charging mode) : 90 mins (90% charge, 8A) |
POWER CONSUMPTION HOUR |
Up to 38 hours(Based on 2.0W power consumption) |
Up to 77 hours(Based on 2.0W power consumption) |
CERTFICATIONS |
KC, CE, FCC |
PACKAGE CONTENTS
IROAD POWERPACK PRO 6 or PRO 12 |
F-INPUT Cable |
OUTPUT Cable |
3Types, Dual Fuse Holder |
Velcro Tape *2 |
Quick Guide |
OPTIONAL
ATO Dual Fuse Cable |
ATO Dual Fuse Cable(Direct) |
Cigar INPUT Cable |
Home adapter |
F-INPUT Extension Cable(3m) |
OUTPUT Cable(5M) |
